CellManager - How can I convert my point cells to graphic cells?

CellManager - How can I convert my point cells to graphic cells?


  1. Load CellManager from your Axiom pull-down menu.
  2. Next to the Files: field press the <Select…> button, then navigate to and select the cell library that contains the cells you would like to modify.

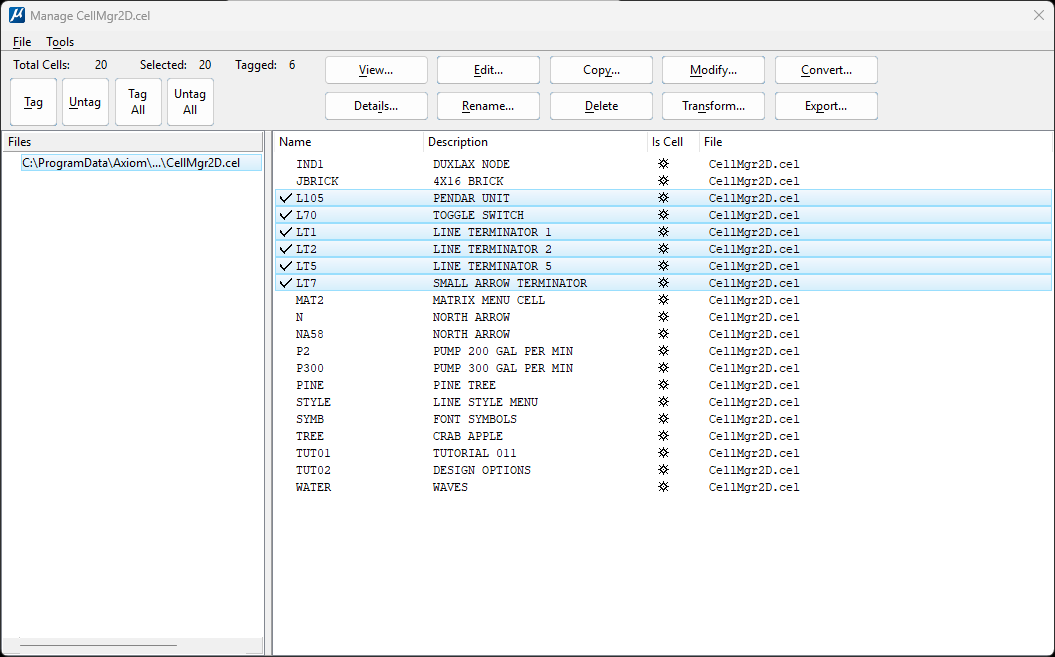

  1. Press the <Manage…> button.
    This brings up the Manage dialog box and displays all cells in the selected library.
  2. Highlight all of the cells you would like to modify, then press <Tag>.
    Tagging marks the highlighted cells for processing.

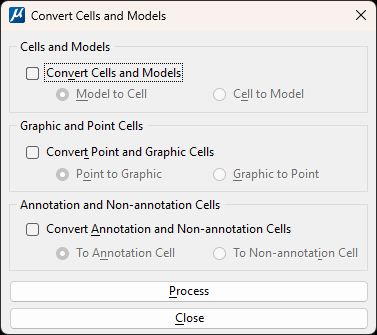

  1. Press <Convert…>.

The Convert Cells and Models dialog box provides several conversion options for converting either cells or models.

  1. Check Convert Point and Graphic Cells, then toggle on Point to Graphic and press <Process>.

All tagged cells will be converted to graphic cells.
