CellManager - How can I create a text report for all cells in my cell library?

CellManager - How can I create a text report for all cells in my cell library?


Use these steps to create a text report for one or more cell libraries.

  1. Load CellManager from your Axiom pull-down menu.

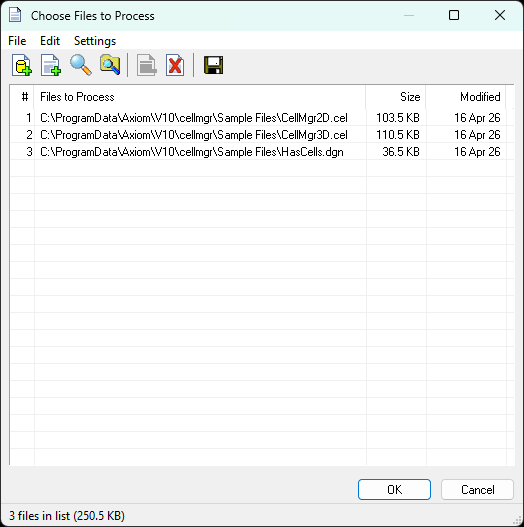

  1. Next to the Files: field press the <Select…> button, then navigate to and select all cell libraries you would like to get a report for.

  1. Press the <Create Report…> button.

  1. Next to the Report File: field press the <Select…> button, then navigate to a convenient location and enter a name for your report.
  2. Next to the Template: field press the <Select…> button. By default, you’ll start in the directory with the delivered template (.tpl) files. The selected template determines what information is included in the report. Choose one and press <Open>.
  3. Press the <Create> button to generate your report.

Your result will be a text report file that contains information for all of the cells in your selected library or libraries.
