CellManager - How do I change attributes for multiple cells in my library?

CellManager - How do I change attributes for multiple cells in my library?


  1. Load CellManager from your Axiom pull-down menu.
  2. Next to the Files: field press the <Select…> button, then navigate to and select the cell library that contains the cells you would like to modify.

  1. Press the <Manage…> button.

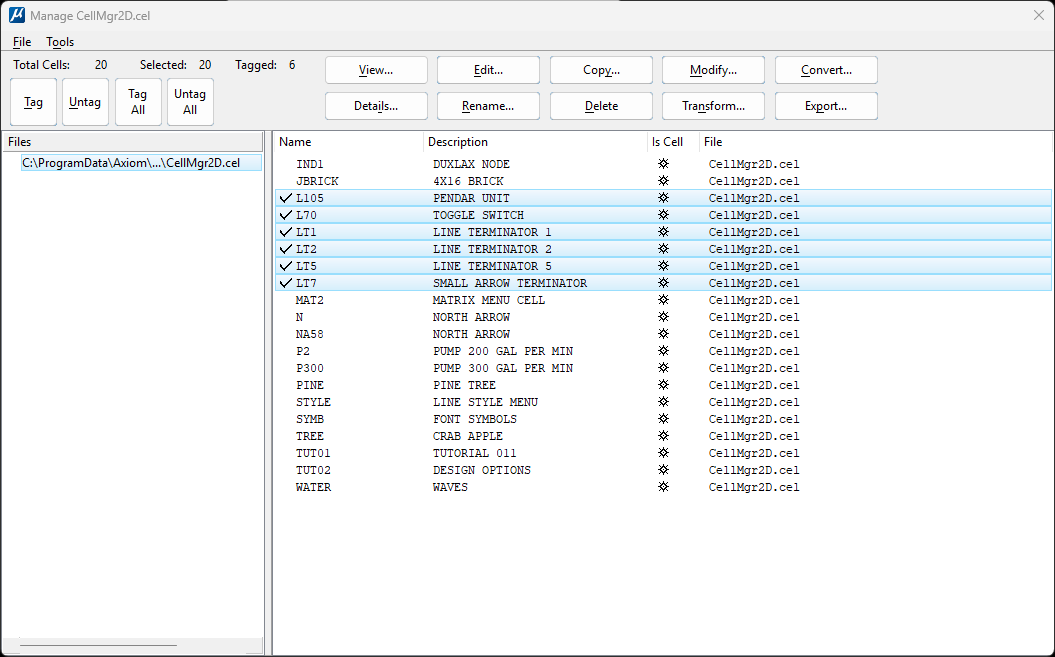

    This brings up the Manage dialog box and displays all cells in the selected library.
  2. Highlight all of the cells you would like to modify, then press <Tag>.
    Tagging marks the highlighted cells for processing.

  1. Press <Modify…>.

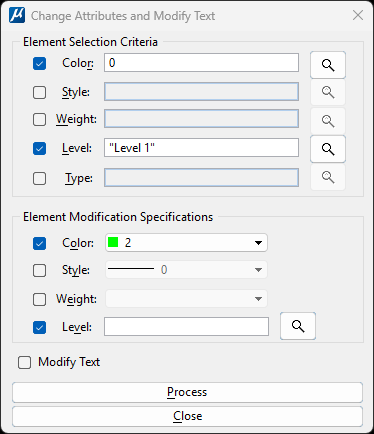

The Change Attributes and Modify Text dialog box contains three sections:
Element Selection Criteria – Define the attributes to search for. Only cells that currently match the attributes selected here are considered for modification.
Element Modification Specifications – Specify the new attribute values to apply to the matching elements.
Modify Text – This is where you can perform text string replacement.


In this example, only cell components that are color 0 on “Level 1” will be modified.

  1. Once you’ve made your selections in the Element Modification Specifications section, press <Process>.

All matched cells from the tagged selection will have their attributes changed.
