CellManager - How do I change the scale, rotation, working units, or resolution of multiple cells in a cell library?

CellManager - How do I change the scale, rotation, working units, or resolution of multiple cells in a cell library?


  1. Load CellManager from your Axiom pull-down menu.
  2. Next to the Files: field press the <Select…> button, then navigate to and select the cell library that contains the cells you would like to modify.

  1. Press the <Manage…> button.

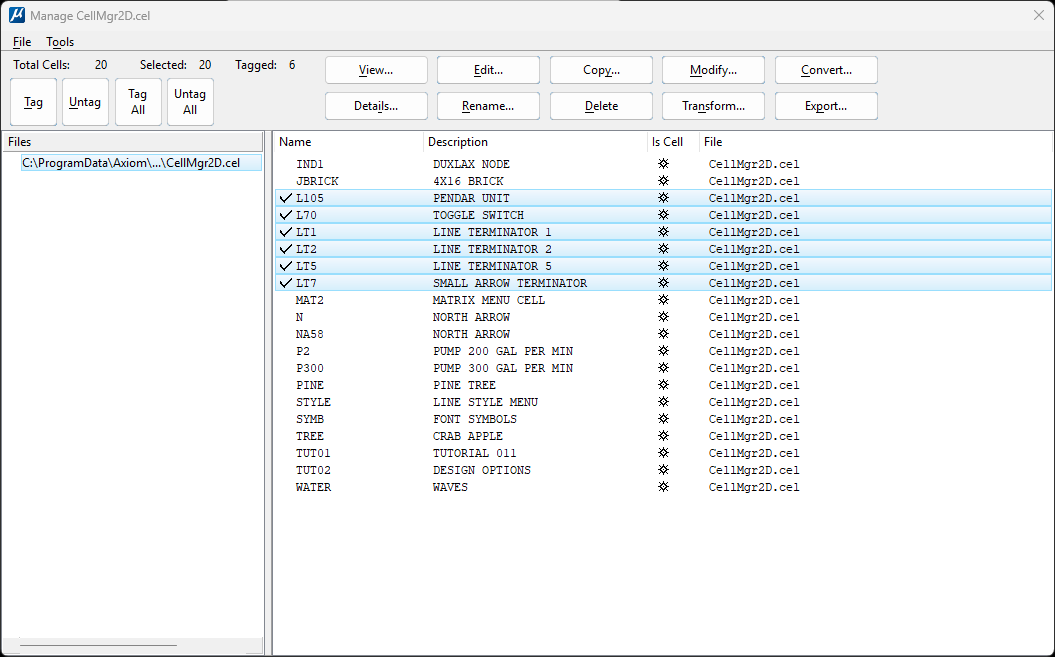

    This brings up the Manage dialog box and displays all cells in the selected library.
  2. Highlight all of the cells you would like to modify, then press <Tag>.
    Tagging marks the highlighted cells for processing.

  1. Press <Transform…>.

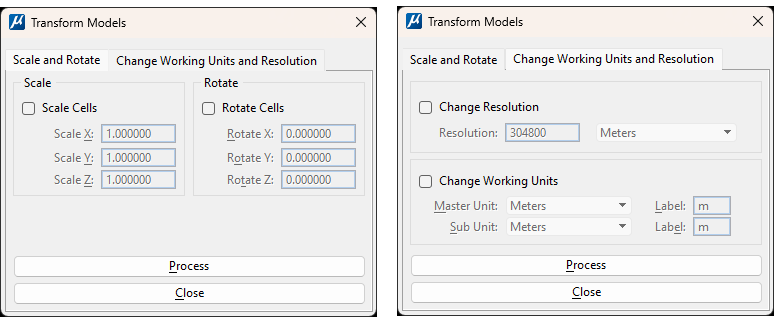

The Transform Models dialog box lets you modify one or more of the following properties: Scale, Rotate, Working Units, Resolution.

  1. Toggle on the setting(s) you want to modify, set the new values and press <Process>.

All tagged cells will be updated using the settings you specified.
