  1. Load CellManager from your Axiom pull-down menu.
  2. Next to the Files: field press the <Select…> button, then navigate to and select the cell library that contains the cells you would like to modify.

  1. Press the <Manage…> button.

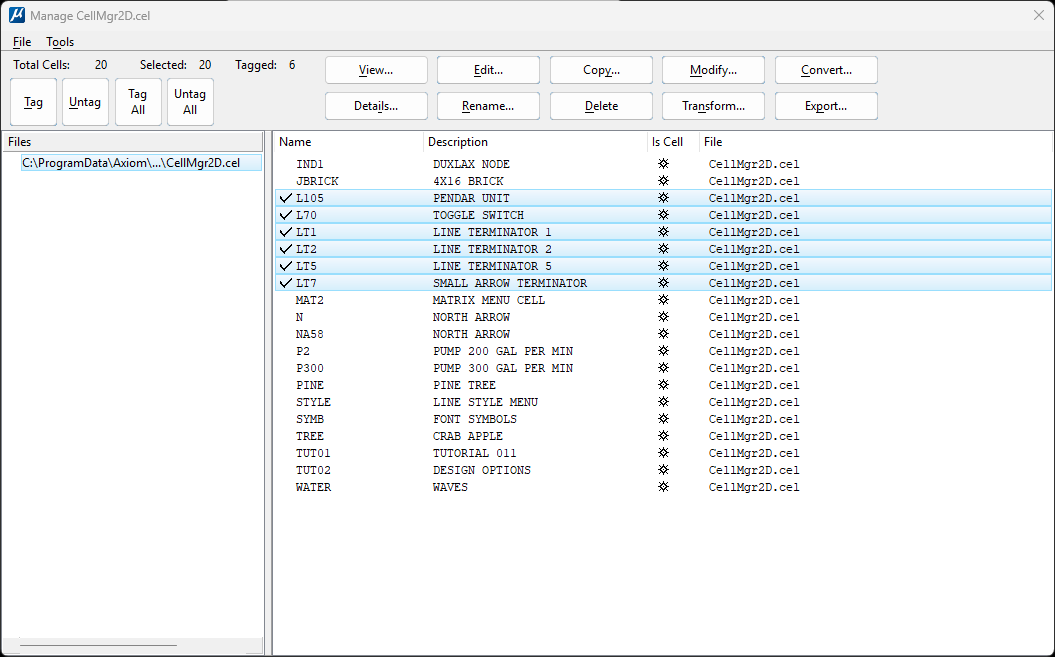

    This brings up the Manage dialog box and displays all cells in the selected library.\
  2. Highlight all of the cells you would like to modify, then press <Tag>.
    Tagging marks the highlighted cells for processing.

  1. Press the <Export…> button.

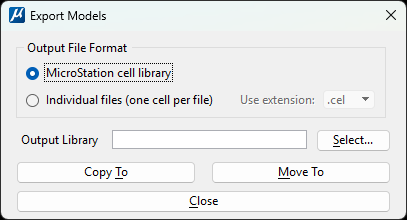

  1. In the Output Library field, enter the full path and file name for the new cell library.
  2. Press <Copy To> to copy the tagged cells to the new library, or <Move To> to move them and remove them from the current library.

Your result will be a new mini library made up of just the cells you tagged from the starting cell library.
