CellManager - How do I create a single cell library out of many cell libraries?

CellManager - How do I create a single cell library out of many cell libraries?


  1. Load CellManager from your Axiom pull-down menu.

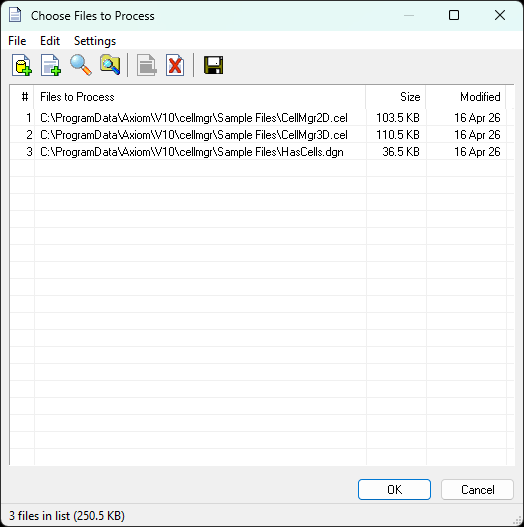

  1. Next to the Files: field press the <Select…> button, then navigate to and select all cell libraries you would like to combine.

  1. Press the <Manage…> button.

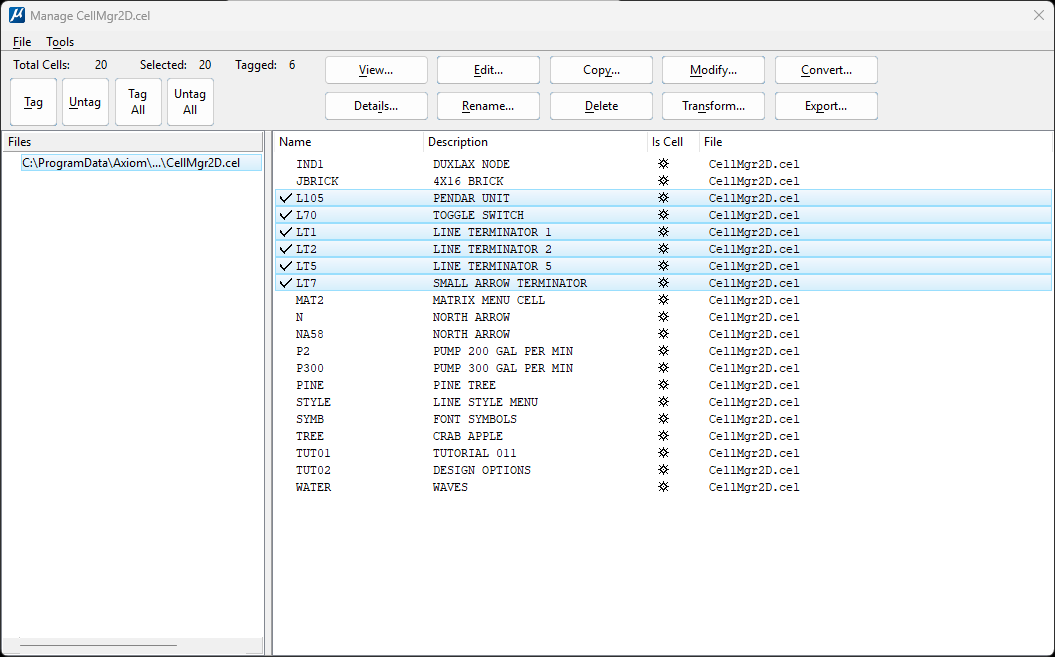

    This brings up the Manage dialog box and displays all cells in the selected libraries.
  2. Highlight all of the cells you would like to modify, then press <Tag>.
    Tagging marks the highlighted cells for processing.

  1. Press the <Export…> button.

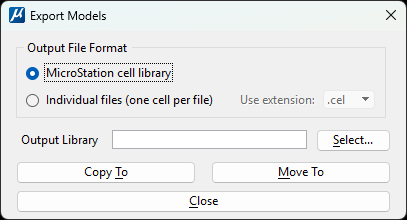

  1. In the Output Library field, enter the full path and file name for the new cell library.
  2. Press <Copy To> to copy the tagged cells to the new library.

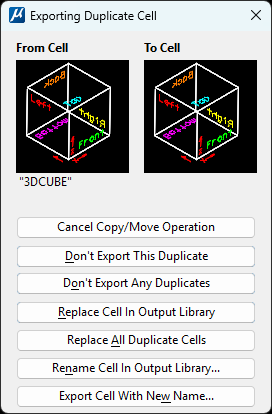

  3. If duplicate cells are encountered, you will be prompted with a dialog box containing a list of options on how to handle them. Choose the option that works best for you.

When complete, the new library will contain all tagged cells from the selected cell libraries.
