You must be logged into ProjectWise to process files stored in ProjectWise.

Many Axiom products can process multiple files. These products each include a “Choose Files to Process” dialog box for selecting the files to process. The “Choose Files to Process” dialog box provides several ways to select files. This article focuses on browsing for and selecting files stored in ProjectWise.

  1. Press the <Edit List…>/<Select…> button next to the “Files:”/”Design Files” field. This will bring up the “Choose Files to Process” dialog box.
  2. Browse for files in a ProjectWise datasource with the “Browse ProjectWise” button . This button is only displayed when MicroStation is connected to ProjectWise.

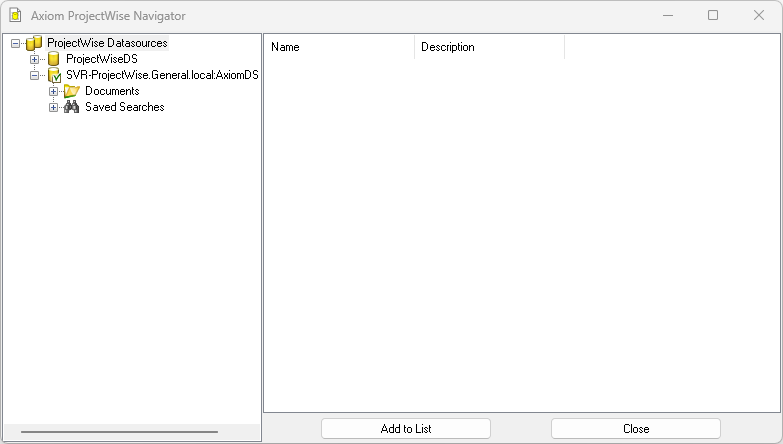

  3. Here you expand to your project folder, select the files you want to process and press <Add to List> to add them to your list of files to process.
    Alternately right-click your selected files and choose “Add Files to List” to get the same result.
  4. When you’ve finished adding files, press <Close> to return to the “Choose Files to Process” dialog.

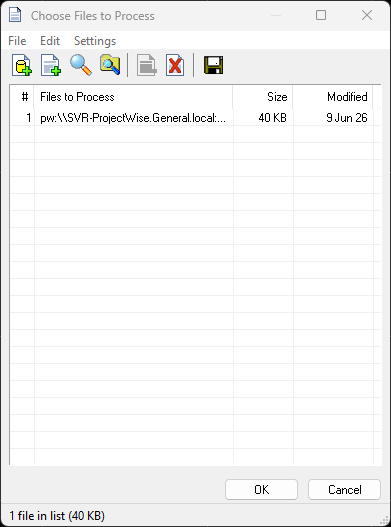

  5. Press <OK> on the “Choose Files to Process” dialog box to return to the main product dialog box.
